AQUARIUS ^^^^^
WATER DEIONISERS


Applications
An Essential piece of equipment for analytic labs, cosmetic industries, food & beverage industries, hospitals, battery industries, R & D centres, universities & pharmaceutical industries.

MACHINE FEATURES

Standard Features

  • Regeneration is automatic through a Programmable Sequential Controller. The controller will initiate regeneration automatically if the quality of water is below the standard. The quality of water is continuously displayed by a Conductivity Controller.
  • The end product quality is selected on the monitor between 1-30 microseimens. The quality depends on source water and pretreatment.

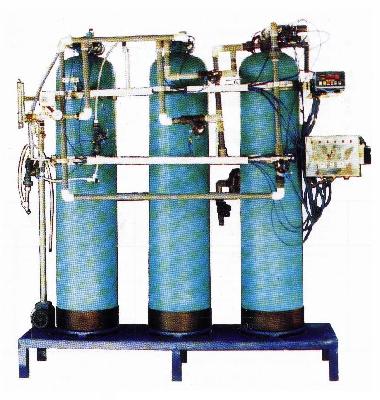

  • Three columns unit-( Cation, anion & mixed Bed which serves as a polisher).
  • Resins contained in specially designed bottles; whose inner shell is fabricated of polyurethane. These bottles are externally wound with fibber glass roving to provide extra strength under pressure up to 150psi.
  • Fluid flow control system consists of double acting hydro-pneumatic valves made from special plastic.

Optional Features

  • Inline chlorine dosing pump.
  • Sand filter.
  • Activated carbon filter.
  • UV Light chamber.
  • Cartridge filtration in series.
    5 Micro- 2 Micro- 0.45 Micro- 0.25 Micro
  • Ring main system which is Dl water storage tank with continuous circulation.

Other FD&C Products

AQUATECH (Multi-Stage water distillers)

ACCUDOSE (Powder filler for accurate dosing)

AQUARIUS (Water Deionisers)

CAPON (Capping Machine)

COMPACTOR (Ideal solution for enhancing product's chemistry)

DYNAMILL (A multi purpose machine for pulverizing, sizing, mixing etc.)

ECO-COTA ( Highly proficient coating technology)

MODULAR AUTOMATIC LIQUID FILLING (Precise filling, capping & labelling)

MODULAR AUTOMATIC LABELLING MACHINE

STERI-TECH (Automatic & reliable sterilizing technology)

THERMOTEK (Efficient & reliable hot air sterilizing technology)

STORAGE VESSEL (Storage & Jacketted or Non-jacketted vessels)

TUBE FILLER Including Folding and Closing


MONOBLOCK rotary filler and capper









Technical Data
Model
Est. Output* b/w regeneration (Litres)
Maximum Dl Water flow rate per hour
Minimum Dl Water flow rate per hour
Maximum plant service inlet pressure bar
HCl Litres
NaOH Kg.
PW-Q
20,000
1000 Lit.
200 Lit.
3
32
9.0
PW-R
30,000
1500 Lit.
300 Lit.
3
48
13.5
PW-S
40,000
2000 Lit.
400 Lit.
3
64
18.0
PW-T
50,000
2500 Lit.
500 Lit.
3
85
22.0
PW-U
60,000
3000 Lit.
800 Lit.
3
96
27.0
PW-V
100,000
4000 Lit.
1000 Lit.
3
175
45
