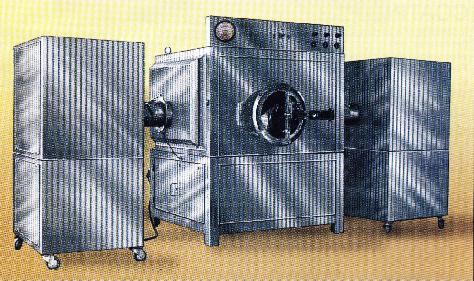

ECO-COTA
PLC BASED

HIGHLY PROFICIENT COATING TECHNOLOGY

APPLICATIONS
Pharma Industry
1. Sugar Coating of Tablets.
2. Film Coating of Tablets.
i). Aqueous Film Coating.
ii). Organic Solvent based Film Coating with specially designed explosion proof ECO-COTA
Food Industry
1. Sugar Coating of chewing gums, Almonds, nuts & other dry fruits.

MACHINE FEATURES
Coating Pan
It consists of a perforated shell with conical ends. The posterior end of the pan is closed while the anterior end is open and forms the mouth of the pan. The mouth is fitted with a reducing collar which prevents the tablets to come out during pan rotation. The mouth is kept closed with a Perspex cover. The pan is fitted with geometrically designed baffles, which affect efficient air exchange: as a result coating times are considerably reduced. Special design of the baffles also controls the speed of the rolling tablets in the coating pan and ensures uniform mixing.

Hot Air Blowing System
The fan unit blows hot sir to the coating pan through a S.S pipe. The incoming air is filtered through a washable filter. Finned air heaters installed in the unit supply hot air in the coating pan at requisite temperature. All components of the blowing system are contained in a stainless steel cabinet. For hygroscopic products air dehumidification system is available. Explosion proof version of ECO-COTA is also available.

Exhaust System
The exhaust fan unit is meant for extraction of humid air from the pan during coating process. All components of the exhaust unit are contained in a stainless steel cabinet.

Spraying Unit
Spraying unit to be fitted interchangeably for film/sugar coating would have spray guns, peristaltic pump, solution tank, distribution manifold for sugar coating and gear pump.

PLC Based Electrical Panel
The control panel of ECO-COTA comprises of:
1. Main electrical panel
2. Display & keyboard(Operator Interface Unit)
3. PLC panel
4. Push buttons for different operations
5. Emergency stop push button.

Other FD&C Products

AQUATECH (Multi-Stage water distillers)

ACCUDOSE (Powder filler for accurate dosing)

AQUARIUS (Water Deionisers)

CAPON (Capping Machine)

COMPACTOR (Ideal solution for enhancing product's chemistry)

DYNAMILL (A multi purpose machine for pulverizing, sizing, mixing etc.)

ECO-COTA ( Highly proficient coating technology)

MODULAR AUTOMATIC LIQUID FILLING (Precise filling, capping & labelling)

MODULAR AUTOMATIC LABELLING MACHINE

STERI-TECH (Automatic & reliable sterilizing technology)

THERMOTEK (Efficient & reliable hot air sterilizing technology)

STORAGE VESSEL (Storage & Jacketted or Non-jacketted vessels)

TUBE FILLER Including Folding and Closing


MONOBLOCK rotary filler and capper




















Technical Data
Model
ECO 600
ECO 750
ECO 900
ECO 1200
ECO 1500
Coating Pan
Pan diameter
600 mm
24"
750mm
30"
900mm
30"
1200mm
36"
1500mm
60 "
Work Capacity
10-15 Kg
15-25 Kg
25-50 Kg
100-160 Kg
250-400 Kg
Pan Speed
2-16 rpm
2-16 rpm
2-16 rpm
2-12 rpm
2-12 rpm
Spray Gun
1
1
2
3
4
Drive Motor
0.5 HP
1 HP
2 HP
3 HP
5 HP
Hot Air Blowing System
Air Flow Rate m3/h
400
600
800
1600
3000
Max. Temp.
85 C
85 C
85 C
85 C
85 C
Heater (KW)
12
15
24
30
45
Motor (HP)
0.5
1
1
3
5
Exhaust System
Motor (HP)
1
2
5
7.5
10
Static Pressure
(mm wa )
250
250
250
250
250
Max. compressed air consumption at 4 bar m3/h
20
25
40
60
80
Dimensions
Depth (mm)
850
1000
1100
1200
1500
Width (mm)
3100
3500
4000
5000
6050
Height (mm)
1500
1800
2000
2150
2250
