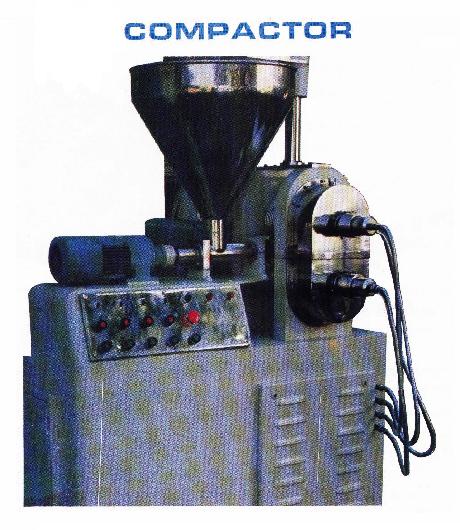

COMPACTOR
What
FD&C Compactor can do?
Densifying powders to increase density
Granulating material to avoid caking during storage
Elimination of wet granulation process
Elimination of wetting agents and subsequent drying
Improving product flow properties
How FD&C Compactor works?
Powder to be compacted is fed to the hopper. The hopper has
an agitator which gives feed to screw feeders. The screw feeder
feeds the desired quantity of powder to compacting rolls. The
compacting rolls compact the powder. The degree of compaction
depends on the hydraulic pressure applied to rolls. The applied
pressure is controlled and adjusted according the nature of
the product. The rolls are provided with a cooling arrangement
which can be connected to in-house water/ chilled water supply.
Depending on the roll surface the output from the rolls may
be continuous sheet or sticks. The surface could be passe through
a lum breaker, mill and a granulator to give an end product
of desired quality.
Detailed
Specifications |
. |
Dimensions |
Width
1564 mm |
. |
Depth 1215 mm |
. |
Height 2318
mm |
. |
. |
Power
Requirement |
. |
Rolls Motor |
5HP, 980RPM,
|
. |
TEFC 50 Hz,
3 Phase with |
. |
speed control |
Granulator &
Communiting Machine |
1HP, 1400 RPM,
TEFC, 50 Hz,
3 Phase |
Screw Feeder |
1HP, 1400 RPM,
TEFC, 50 HZ, |
. |
3 Phase with
speed control |
Agitator |
1/2 HP, 1400
RPM, TEFC, |
. |
50 Hz, 3 Phase
with speed control |
. |
. |
Transmission |
Rolls, Warm
Gear set |
. |
Agitator Helical
Gear |
. |
Screw Feeder
Warm Gear |
. |
. |
Compaction
Rolls |
. |
Shape |
Pocketed Grooved |
. |
Smooth |
. |
Full Grooved |
. |
Circumferential
Grooved |
Material |
Stainless Steel |
Hopper |
Approximately
40 litre capacity in |
. |
AISI 316 Stainless
steel |
. |
. |
Hydraulic
System |
Manual Hydraulic
Pump, and |
. |
Hydraulic Cylinder
to provide |
. |
maximum
of 20 tons rolls force. |
|
